LightABLE 10G LL Series 4TRX, 12TX, and 12RX

Rugged Transceivers

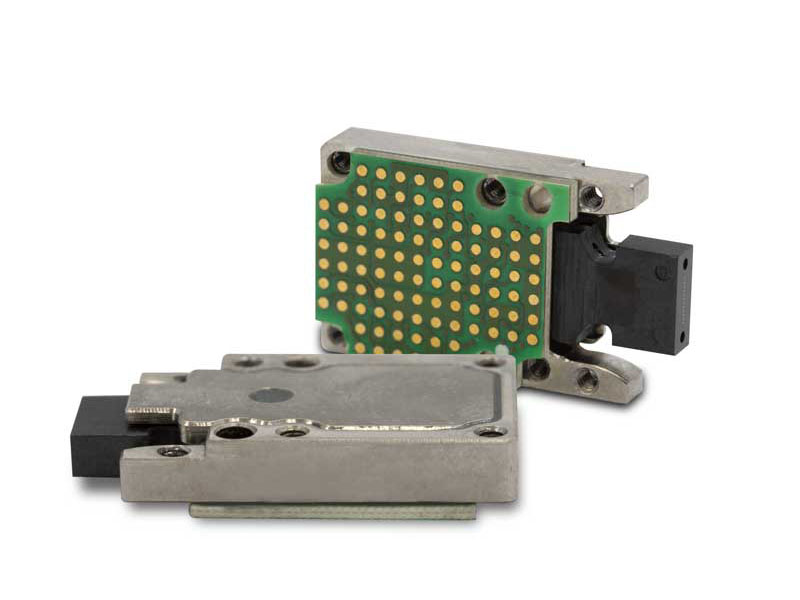

The low profile LightABLE™ 10G LL Series screw-in module (4.5 mm) mounts to the board via a 1 mm LGA connector (interposer).
It is offered as a (4+4)-lane transceiver, a 12-channel transmitter, and a 12-channel receiver. All modules operate at 10.3125 Gbps per channel over a recommended operating temperature range of −40 °C to 85 °C at ultra-low bit error rates of 10^-12.

Download Brochure Interactive display board

Main Product Image

Product Image 2

Product Image 3

Product Image 4

Product Image 5

Interactive display board
Notice to California Residents: PROPOSITION 65 WARNING Click Here for details.
To find out if part number(s) meet regulatory substance or materials compliance (e.g., REACH, RoHS, or any other regulatory requirement) for compliance verification.

Small: 5.5 mm high (module and interposer)
Rugged: MIL-STD 883 shock and vibration qualified
Sealed: Moisture and thermal shock resistant
Storage temperature: –57 ºC to 100 ºC
Performance: up to 10.3125 Gbps/channel over a recommended operating temperature range of –40 ºC to 85 ºC
Sensitivity: –12 dBm or –9 dBm versions available for BER 10^–12
Proven: Used in many defense applications.
Low power consumption: 100 mW/channel
4 TRX (4+4)-lane per device (40G, full duplex)
12 TX or 12 RX channel per device (120G, half duplex)
Multimode 850 nm wavelength laser
Over 100 m reach on OM3 ribbon fiber
Standard MT parallel fiber connector
RoHS
Equalizer, pre-emphasis, adjustable output
Monitoring: LOS, RSSI, temperature, etc.
Integrated microcontroller
Industrial grade temperature range (–40 ºC to 85 ºC)
Attaches to system board with 1 mm LGA interposer.

Applications

Sensor connectivity including all-digital AESA radars
High I/O density, high BW communication links
ISR embedded systems

Drawing of LightABLE 10G LL — Drawing of LightABLE 10G LL.
Dimensions are given in mm.

Fiber assignment of LightABLE 10G LL — Fiber assignment of LightABLE 10G LL 12TX and 12RX (top) and LightABLE 10G LL 4TRX (bottom)

LightABLE LL LGA interposer

LightABLE LL LGA interposer
