LightABLE 10G LM Series 4TRX, 12TX, and 12RX

Embedded transceiver with microcontroller

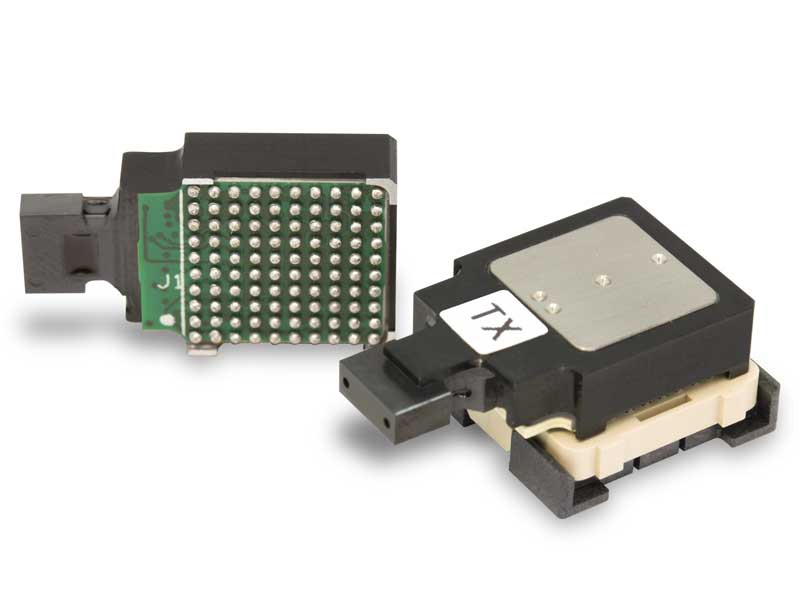

The low profile LightABLE^™ 10G LM Series module (5 mm) is offered as a (4+4)-lane transceiver, a 12-channel transmitter, or a 12-channel receiver. The modules can be mounted directly upon a high-speed printed circuit board via surface mountable 1.27 mm pitch BGA or via a MEG-array connector. All modules operate at 10.3125 Gbps per channel over a recommended operating temperature range of −40 °C to 85 °C at ultra-low bit error rates of 10^-12.

Download Brochure

Main Product Image

Product Image 2

Product Image 3

Notice to California Residents: PROPOSITION 65 WARNING Click Here for details.
To find out if part number(s) meet regulatory substance or materials compliance (e.g., REACH, RoHS, or any other regulatory requirement) for compliance verification.

Small: Less than 5 mm high (SMT version)
Rugged: MIL-STD 883 shock and vibration qualified
Sealed: Moisture and thermal shock resistant
Storage temperature: –57 ºC to 100 ºC
Performance: up to 10.3125 Gbps/channel over a recommended operating temperature range of –40 ºC to 85 ºC
Sensitivity: –12 dBm for BER 10^–12
Proven: Used in many defense applications.
Low power consumption: 100 mW/channel
4 TRX (4+4)-lane per device (40G, full duplex)
12 TX or 12 RX channel per device (120G, half duplex)
Multimode 850 nm wavelength laser
Over 100 m reach on OM3 ribbon fiber
Standard MT parallel fiber connector
Surface mountable or pluggable
RoHS or tin-lead
Equalizer, pre-emphasis, adjustable output
Monitoring: LOS, RSSI, temperature, etc.
Integrated microcontroller

Applications

Sensor connectivity including all-digital AESA radars
CCD/CMOS imaging sensor
FPGA SerDes application

Drawing of LightABLE 10G LM — Drawing of LightABLE 10G LM
Dimensions are given in mm.
