0.125" Centers High Current

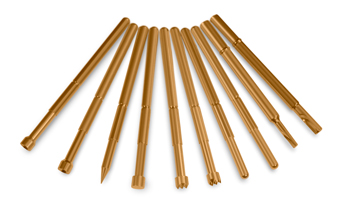

High Current Spring Probes

The SH Series features a bias ball, which is the most aggressive biasing technique to aid in assuring a low and consistent resistance, cycle after cycle. The SHE Series features a bias spring, an effective biasing technique for many applications.

Download Brochure

Features & Benefits

  • SH-3 and SHE-3 Series probes and receptacles
  • 14 A and 27 A current ratings
  • 7.00 oz. spring force
  • 1.310" (33.27 mm) overall length
  • IDI Spring Probe technology

Product Specifications

Probe Centers Probe OAL Max Travel Current Rating Mating Receptacle
SH-3   Series 0.125 (3.18) 1.310 (33.27) 0.250 (6.35) 27 A
Continuous		 RH-3
Series
SHE-3 Series 0.125 (3.18) 1.310 (33.27) 0.250 (6.35) 14 A
Continuous		 RH-3
Series

Dimensions are in inches (mm) | All specifications are subject to change.

Receptacle Tooling

Receptacle Insertion Tool
RH-3 Series RT-3
